FEATURES

• Maximum Operating Temperature: 120 ºC

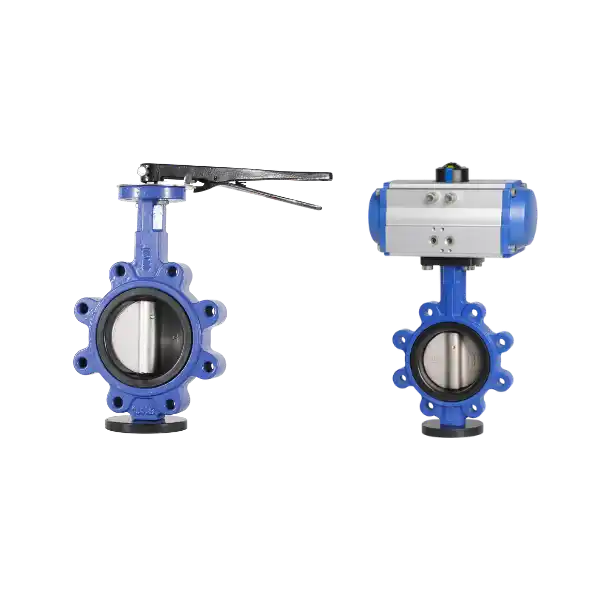

• The closing element in butterfly valves is a disc that rotates around a shaft positioned on the vertical axis.

• The disk mechanism, which is mounted within the body and rotates 90° around its own axis, performs the function of fully opening or closing the pipe’s internal cross-section.

• Sealing is achieved between the body interior and the metal flange using elastic or plastic sealing elements.

• The sealing element also acts as a gasket in the flange between the valve and the pipe.

• The main advantages of this type of valve are: low hydraulic loss, fast opening and closing with low torque, high sealing performance, low weight, and compact design requiring minimal installation space.

• The valve stem can be in a horizontal or vertical position. However, horizontal installation is preferred for DN300 and above.

TYPES OF ACTUATORS

• Remote Controlled – Reducer
• Single-Acting Pneumatic Actuator
• Double-Acting Pneumatic Actuator
• Electric Actuator/On-Off (with Manual Lever)

APPLICATION AREAS

• Heating, ventilation, and air conditioning systems

• Water treatment and distribution systems

• mining industry

• Shipbuilding and drilling facilities

• Food and chemical plants

• Fire suppression systems

• Water, seawater, dust, gas, wastewater, and air
